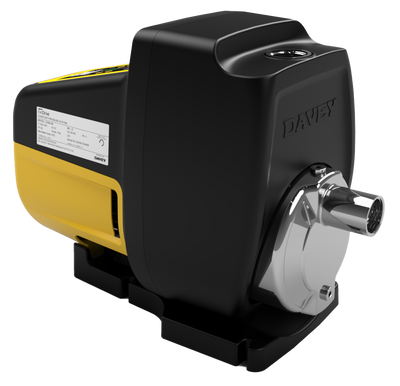

Davey EvoDrive ED16-40NPT

The Davey EvoDrive ED16-40NPT is whisper-quiet water pressure for modern homes. The EvoDrive uses Variable Speed Drive (VSD) technology to maintain constant pressure whether you're running one tap or multiple showers at once. A permanent magnet motor keeps operation ultra-quiet and efficient. The plug-and-pump setup makes installation simple, just install and it's ready to go. Equipped with an illuminated touch panel for easy monitoring and adjustable pressure settings.

For domestic pressure boosting and below-ground storage tank applications. Dual pump connection capable for duty/standby or assist mode (cable sold separately).

Key Specs: 0.90 kW, 110-120 Volt, Single Phase, 1" NPT Inlet/Outlet

Features and Benefits

Constant Pressure

• VSD technology adjusts motor speed based on water demand
• Steady pressure from a single faucet to running multiple fixtures at once

Quiet & Efficient

• Permanent magnet motor for ultra-quiet operation

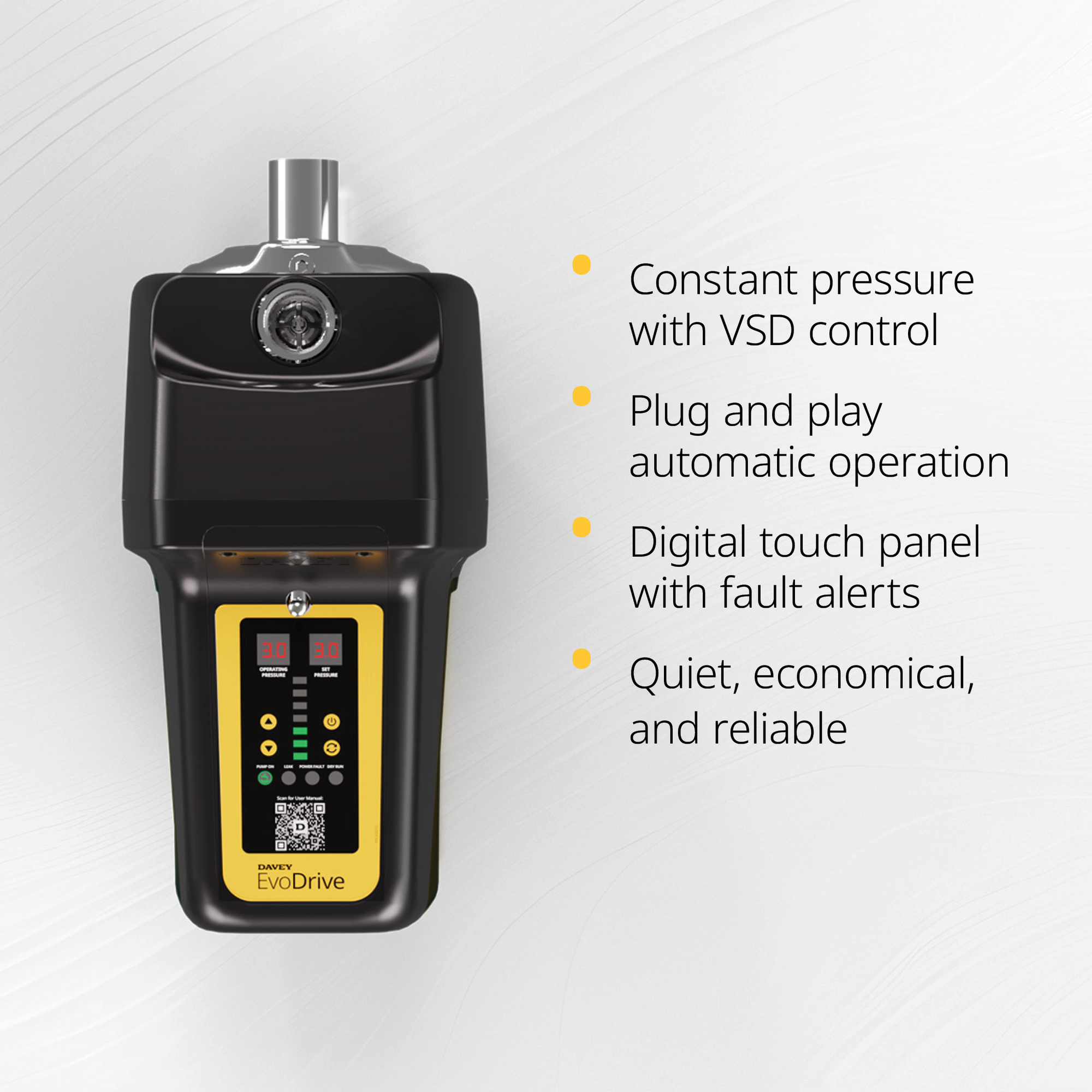

Digital Display

• Illuminated touch panel displays operating pressure and set pressure
• Adjustable pressure setting (preset at 60 PSI)
• Power bar indicator shows energy usage
• Alerts for faults, pipeline leaks, low water supply, and power issues

Built to Last

• 304 stainless steel casing, impellers, and shaft
• Dry run protection
• Loss of prime protection

Easy Setup

• Install it, plug it in, done
• 1" NPT inlet and outlet
• 4 mounting points for secure installation
• Built-in check valves on inlet and outlet

Flexible Applications

• Works with above ground tanks, underground reservoirs, or municipal water
• Dual pump capable for duty/standby or assist mode (connection cable sold separately)

Specifications

Electrical

• Voltage: 110-120V
• Frequency: 60 Hz
• Input Power: 0.90 kW
• Max Current: 11 Amps
• Plug Type: NEMA 5-15 (Single Phase)

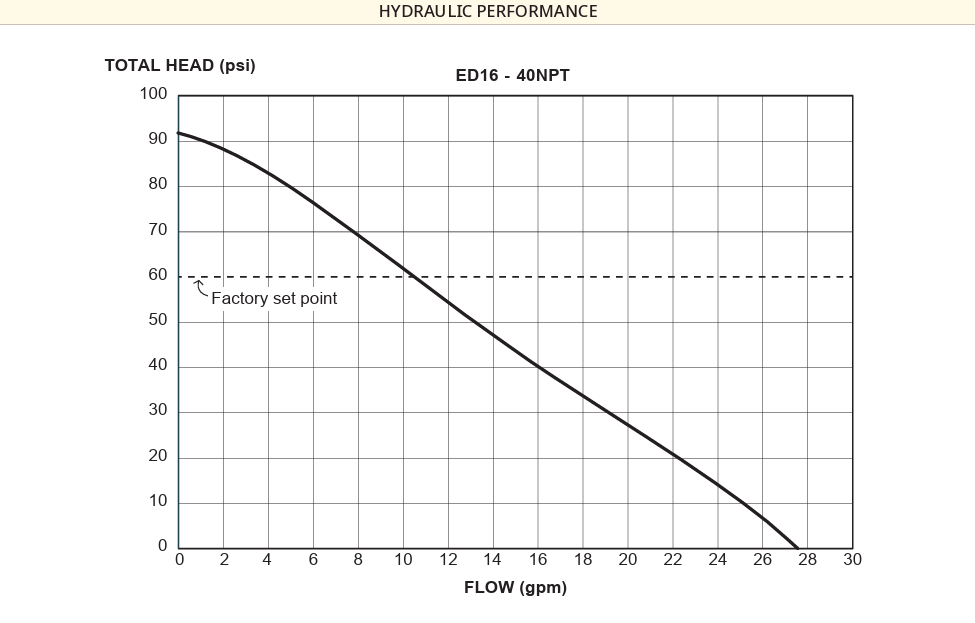

Performance

• Flow Rate @ 60 PSI: 10.5 GPM (factory set point)
• Flow Rate @ 40 PSI: 16 GPM
• Flow Rate @ 20 PSI: 22 GPM
• Max Flow: 28 GPM
• Max Pressure: 95 PSI
• Max Suction Lift: 13 ft
• Max Casing Pressure: 145 PSI

Connections

• Inlet: 1" NPT Female
• Outlet: 1" NPT Female

Build

• Stages: 3
• Casing: 304 Stainless Steel
• Impellers: 304 Stainless Steel
• Pump Shaft: 304 Stainless Steel

Dimensions

• Length: 16.26"
• Width: 7.8"
• Height: 11.7"
• Weight: 25.5 lbs

Operating Conditions

• Ambient Temp: 32-122°F
• Max Humidity: 93%
• Fluid Type: Clean, clear, non-corrosive, neutral pH
