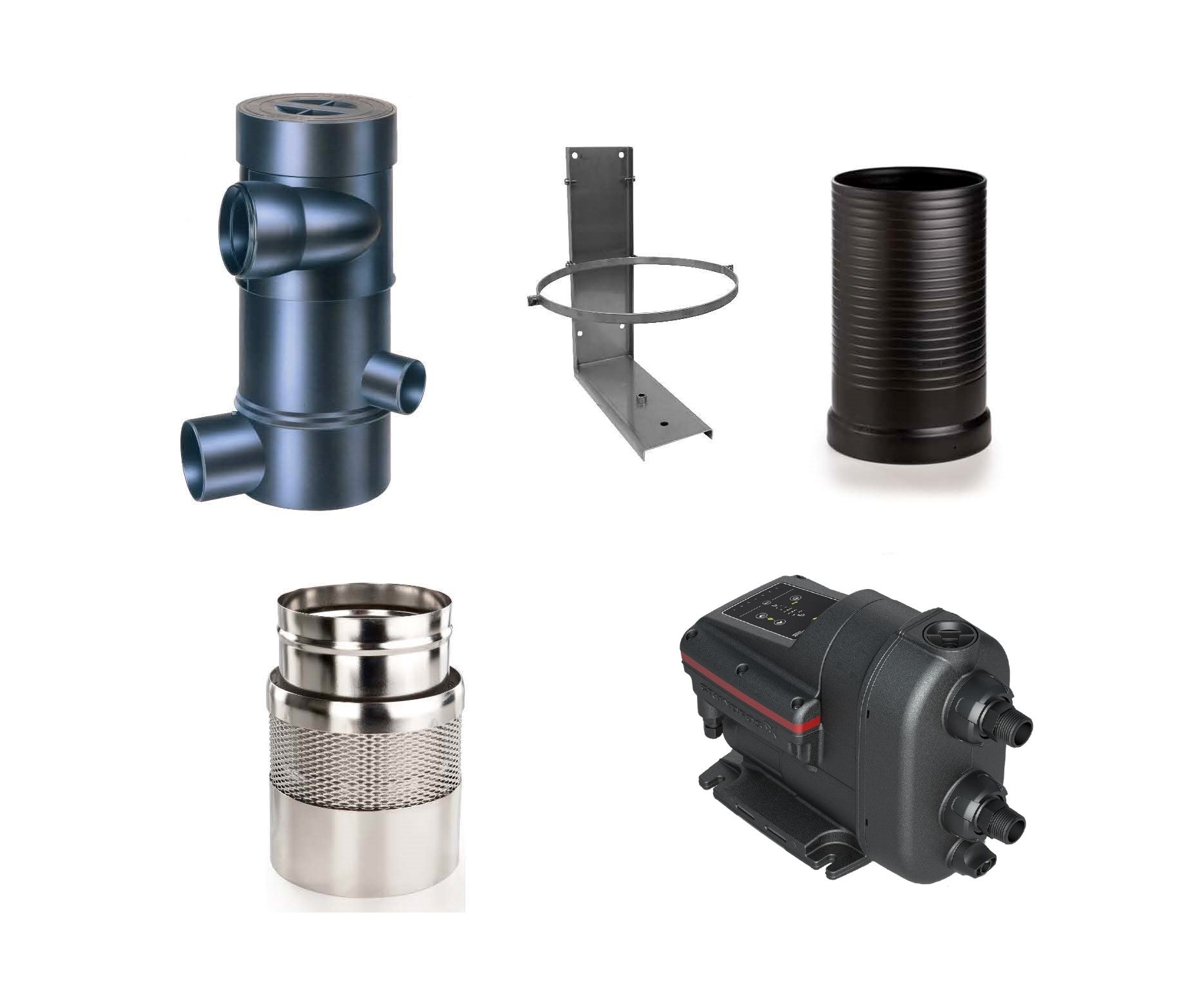

5,500 Square Foot Rainwater Collection Kit – Above Ground

• Premium high-capacity German-engineered rainwater pre-filter.
• Utilizes vortex filtration technology to separate leaves, debris, insects, and roof contaminants before water enters the storage tank.
• Designed to accommodate larger roof collection areas and higher flow rates.
• Stainless steel filter insert provides exceptional durability and long service life.
• Self-cleaning design minimizes maintenance requirements while maximizing water recovery.

Filter Mounting Bracket

• Securely supports the WISY filter assembly.
• Provides stable installation and easy access for maintenance.
• Designed for long-term outdoor performance.

Flexible Rubber Couplings

• Creates watertight connections between the filter and associated plumbing.
• Accommodates minor installation tolerances and pipe movement.
• Simplifies installation while maintaining system reliability.

4″ Smoothing Inlet

• Introduces incoming water at the bottom of the storage tank.
• Reduces turbulence and prevents settled sediment from being stirred into suspension.
• Helps maintain cleaner stored water over time.
• Supports improved system efficiency and reduced maintenance.

Grundfos SCALA2 Variable-Speed Booster Pump (115V)

• Intelligent pressure-boosting system designed for rainwater harvesting applications.
• Maintains consistent water pressure regardless of changing demand.
• Operates quietly with fully integrated controls and pressure management features.
• Self-priming design with built-in dry-run protection.
• Ideal for irrigation systems, washdown stations, hose bibs, and non-potable building applications.
• Energy-efficient operation adjusts pump performance to match actual water demand.

1-1/4″ Coarse Floating Filter

• Draws water from just below the water surface where the highest-quality water is typically found.
• Prevents floating debris and bottom sediment from entering the pump system.
• Improves delivered water quality and helps protect pump components.
• Designed specifically for rainwater storage applications.

7′ Floating Suction Hose Assembly

• Connects the floating intake filter to the pump suction line.
• Allows the intake assembly to move with changing water levels.
• Maintains access to cleaner water throughout the tank’s operating range.

Bulkhead Fittings

• Creates watertight penetrations through the tank wall.
• Provides secure plumbing connections for suction and system piping.
• Engineered for long-term leak-free operation.

Schedule 40 PVC Fittings

• Heavy-duty fittings required for system assembly.
• Corrosion-resistant construction designed for outdoor service.
• Provides durable and reliable plumbing connections throughout the system.
