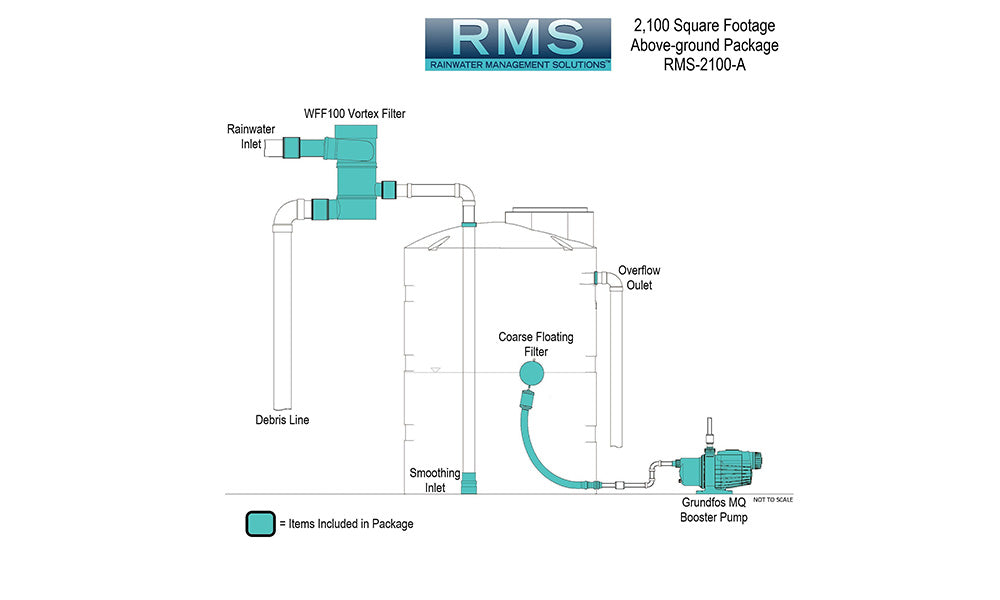

2,100 Square Foot Rainwater Collection Kit – Above Ground

WISY WFF 100 Vortex Fine Filter

• Premium self-cleaning rainwater pre-filter manufactured by WISY AG.
• Filters debris before water enters the storage tank.
• Utilizes a vortex filtration process to remove leaves, twigs, roof grit, and other contaminants.
• Up to 90% water recovery efficiency.
• Stainless steel filter insert for long-term durability and minimal maintenance.

Filter Mounting Bracket

• Securely supports the WISY filter assembly.
• Simplifies installation and maintenance access.

Flexible Rubber Couplings

• Creates watertight connections between system components.
• Accommodates slight pipe movement and installation tolerances.

Smoothing Inlet

• Directs incoming water to the bottom of the tank.
• Minimizes turbulence and prevents settled sediment from being stirred up.
• Helps maintain higher overall water quality.

Grundfos SCALA2 Variable-Speed Booster Pump (115V)

• Fully integrated pressure boosting system.
• Provides consistent water pressure throughout varying flow demands.
• Quiet operation with built-in intelligent controls.
• Self-priming design with dry-run protection.
• Ideal for irrigation, outdoor water use, and non-potable building applications.

1-1/4″ Coarse Floating Intake Filter

• Suspended below the water surface where the cleanest water is located.
• Prevents floating debris and settled sediment from entering the pump.
• Improves system reliability and water quality.

7′ Floating Suction Hose Assembly

• Connects the floating intake filter to the pump suction line.
• Allows the intake to rise and fall with changing water levels.

Bulkhead Fittings

• Provides watertight tank wall penetrations.
• Designed for secure installation of suction connections.

Schedule 40 PVC Fittings

• Heavy-duty plumbing fittings required for system assembly.
• Corrosion-resistant and suitable for long-term outdoor use.
