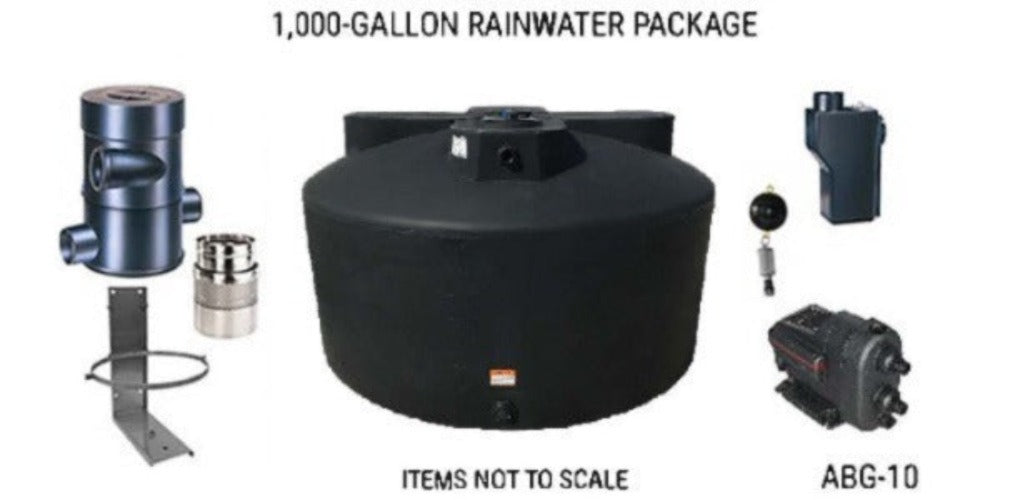

1000 Gallon Rainwater Kit with Pre-Plumbed Tank

1,000-Gallon Rainwater Storage Tank

• High-capacity above-ground polyethylene tank.
• Provides 1,000 gallons of rainwater storage capacity.
• Durable UV-resistant construction designed for long service life.
• Compact footprint with dimensions of 64″ diameter × 80″ height.

WISY WFF100 Vortex Fine Filter

• Premium German-engineered rainwater pre-filter.
• Uses vortex filtration technology to remove leaves, twigs, insects, and roof debris before water enters the tank.
• Self-cleaning design reduces maintenance requirements.
• High water recovery efficiency helps maximize harvested rainwater.

Filter Mounting Bracket

• Provides secure support for the filter assembly.
• Allows convenient access for inspection and maintenance.
• Designed for long-term outdoor use.

Flexible Rubber Couplings

• Creates watertight connections between the filter and plumbing system.
• Accommodates slight alignment variations during installation.
• Provides a durable and reliable connection.

4″ Smoothing Inlet

• Directs incoming water gently to the bottom of the storage tank.
• Prevents disturbance of settled sediment.
• Helps maintain cleaner stored water and improves overall tank performance.

4″ Overflow Device

• Safely manages excess water during heavy rainfall events.
• Removes floating contaminants from the water surface.
• Helps maintain water quality within the storage tank.
• Prevents pest intrusion through the overflow connection.

Grundfos SCALA2 Variable-Speed Booster Pump (115V)

• Intelligent pressure-boosting system designed for rainwater harvesting applications.
• Delivers consistent water pressure regardless of varying demand.
• Self-priming design with integrated controls and dry-run protection.
• Quiet, energy-efficient operation.
• Ideal for irrigation, hose bibs, washdown stations, and non-potable water applications.

1-1/4″ Floating Filter Assembly

• Draws water from just below the water surface where the cleanest water is typically found.
• Prevents bottom sediment and floating debris from entering the pump.
• Improves delivered water quality and protects pumping equipment.

7′ Food-Grade Suction Hose

• Connects the floating intake assembly to the pump suction line.
• Allows the intake to rise and fall with changing water levels.
• Constructed using materials suitable for rainwater storage applications.

1-1/4″ Check Valve

• Maintains pump prime and system pressure.
• Prevents reverse flow within the plumbing system.
• Improves pump reliability and operational efficiency.

Tank Gaskets, Bulkheads, and Fittings

• Provides watertight tank penetrations and plumbing connections.
• Engineered for secure, leak-free installation.
• Includes the necessary components to complete system assembly.
