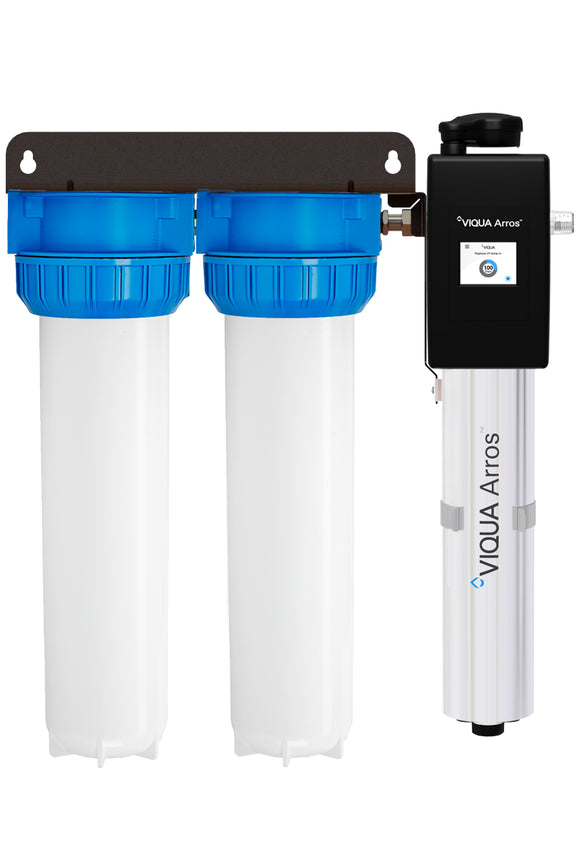

22 GPM Viqua Arros 22-IHS22 UV Water Treatment System

Multi-Stage Treatment

• Combines sediment filtration, carbon filtration, and UV disinfection in a single system
• Carbon filtration helps improve taste and odor while sediment filtration helps reduce particulate matter
• Includes a 20″ high-flow sediment filter and a 20″ carbon filter

UV Disinfection

• High-output UV lamp provides chemical-free disinfection
• Inactivates microorganisms such as E. coli, Cryptosporidium, Giardia, and fecal coliform
• Delivers up to 22 GPM at a 30 mJ/cm² UV dose

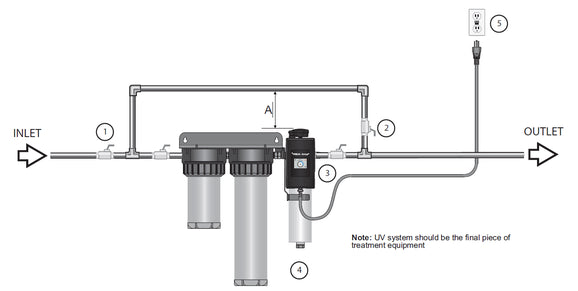

Easy Installation

• Tidal™ chamber design aligns inlet and outlet connections on a single plane
• PolyProtect™ shield allows direct plumbing to PEX and other polymer piping materials
• Compact footprint and mounted controller simplify installation
• Elongated steel mounting bracket supports secure mounting

Smart Monitoring

• LCD touchscreen controller provides system status and operating information
• Stream™ technology measures actual lamp usage for accurate maintenance tracking
• Audible lamp replacement reminder and failure indicator alarm
• Displays lamp status, runtime, and maintenance information

Easy Maintenance

• Premium three-piece filter housings simplify cartridge replacement
• All-in-one UV lamp assembly supports straightforward annual lamp replacement
• Integrated drain plug allows quick draining during service

Performance

• Flow Rate @ 30 mJ/cm²: 22 GPM
• Flow Rate @ 40 mJ/cm²: 16 GPM
• Flow Rate @ 16 mJ/cm²: 42 GPM
• Lamp Type: High Output UV Lamp

Filtration

• Sediment Filter: 20″ High-Flow Filter
• Carbon Filter: 20″ High-Performance Carbon Filter

Construction

• Chamber Material: 304 Stainless Steel
• Integrated UV chamber, controller, and filtration assembly
• Overall Dimensions: 24.95″ × 27.5″ × 9.0″

Connections

• Inlet Connection: 1″ FNPT
• Outlet Connection: 1″ MNPT / ¾” FNPT Combo

Electrical

• Voltage: 100-240V (50/60 Hz)
• Maximum Current: 1.5 A
• Power Consumption: 65 W
• Lamp Power: 52 W

Operating Conditions

• Maximum Operating Pressure: 100 PSI
• Water Temperature Range: 36°F-104°F (2°C-40°C)

Controller Features

• LCD Touchscreen Display
• Lamp Replacement Reminder
• Visual Lamp Life Indicator
• True Lamp Running Time
• System Total Running Time

Product Number

• Arros 22-IHS22
