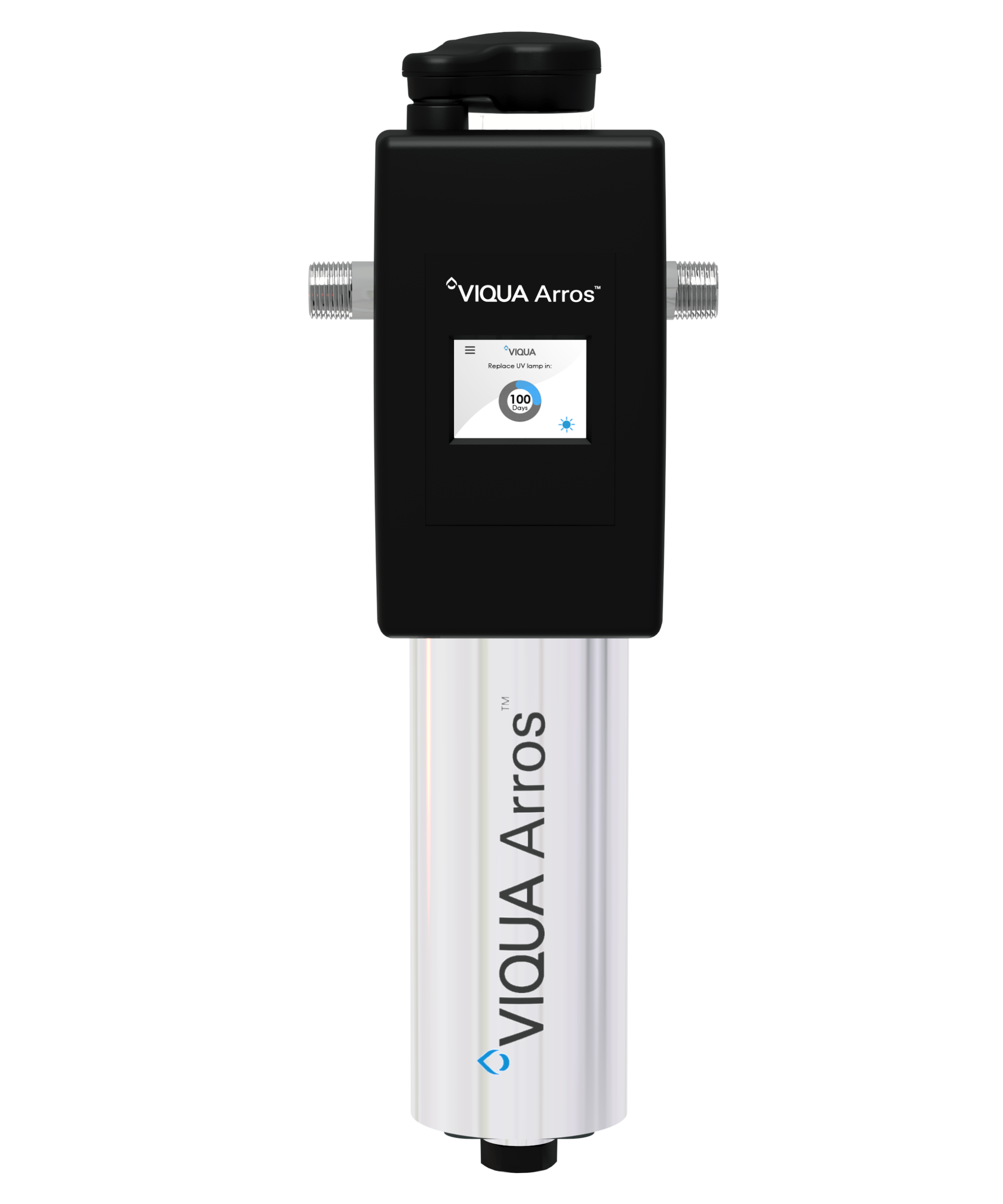

15 GPM Viqua Arros 15 UV Water Treatment System

• High-output UV technology provides chemical-free water treatment
• Designed for residential and light commercial applications up to 15 GPM
• Performance testing has generated UV dose delivery data for the inactivation of E. coli, Cryptosporidium, Giardia, and fecal coliform
• No chemicals, salt, or additives required for treatment

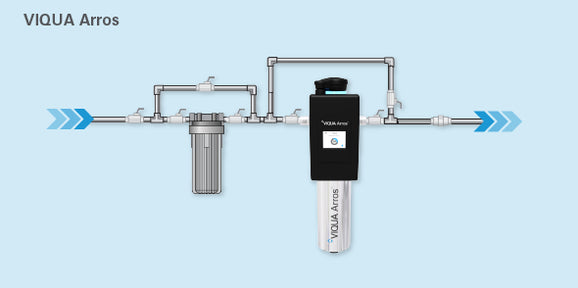

Simplified Installation

• Tidal™ chamber design aligns inlet and outlet connections on a single plane
• Compact all-in-one design reduces installation complexity
• PolyProtect™ shield allows direct plumbing to PEX and other polymer piping materials
• Can be installed vertically or horizontally to fit available space

Intelligent Monitoring

• LCD touchscreen controller provides system status and operating information
• Stream™ technology tracks actual lamp usage for accurate maintenance scheduling
• Built-in lamp replacement reminders
• Visual lamp-life and total run-time tracking

Easy Maintenance

• All-in-one lamp assembly simplifies annual lamp replacement
• Integrated drain plug allows quick draining during service
• Replacement part information available through the controller
• Designed for straightforward routine maintenance

• Flow Rate @ 30 mJ/cm²: 15 GPM
• Flow Rate @ 40 mJ/cm²: 12 GPM
• Flow Rate @ 16 mJ/cm²: 29 GPM
• Lamp Type: High Output UV Lamp

Construction

• Chamber Material: 304 Stainless Steel
• Chamber Dimensions: 16.5″ × 4.0″

Connections

• Inlet / Outlet Connections: 1″ MNPT / ¾” FNPT

Electrical

• Voltage: 100-240V, 50/60 Hz
• Maximum Current: 1.5 A
• Power Consumption: 50 W
• Lamp Power: 38 W

Operating Conditions

• Maximum Operating Pressure: 125 PSI
• Water Temperature Range: 36°F-104°F (2°C-40°C)

Controller Features

• LCD Touchscreen Display
• Lamp Replacement Reminder
• Visual Lamp Life Indicator
• True Lamp Running Time Tracking
• Total System Run Time Tracking

Product Number

• VIQUA-Arros15

• Replacement UV Lamp (VA15LU)
