RMS LP-HO 5GPM Ultraviolet Light

The RMS LP-HO (low-pressure, high-output) UV system is ideal for larger residential  and light commercial applications.  This series offers 5 to 40 gallons per minute systems.  Each UV system comes with an axial flow 316L stainless steel reactor that allows for easy lamp/sleeve service without draining the water.  This vessel was designed and manufactured to ASME pressure standards.  This low-pressure high-output UV lamps are for increased power density and consistent output throughout the rated 10,000 hours of lamp life.

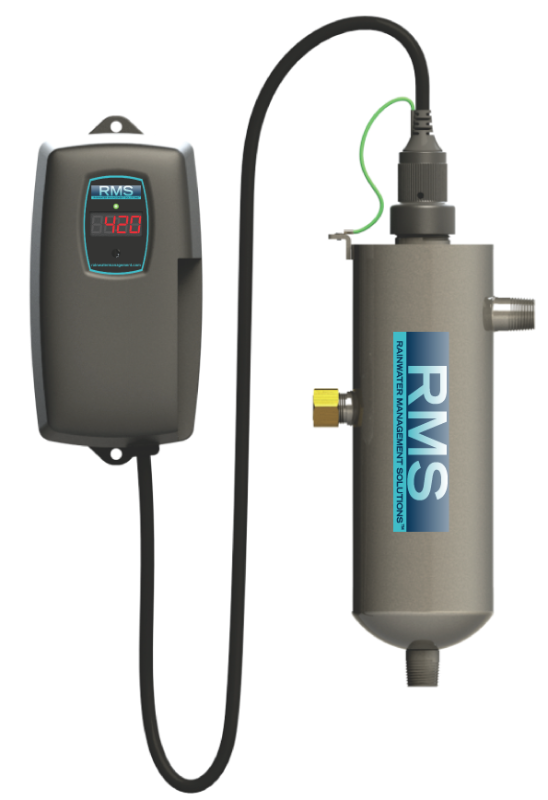

The RMS4-5C model comes with an LED lamp countdown so there's never any guessing when to change the bulb.

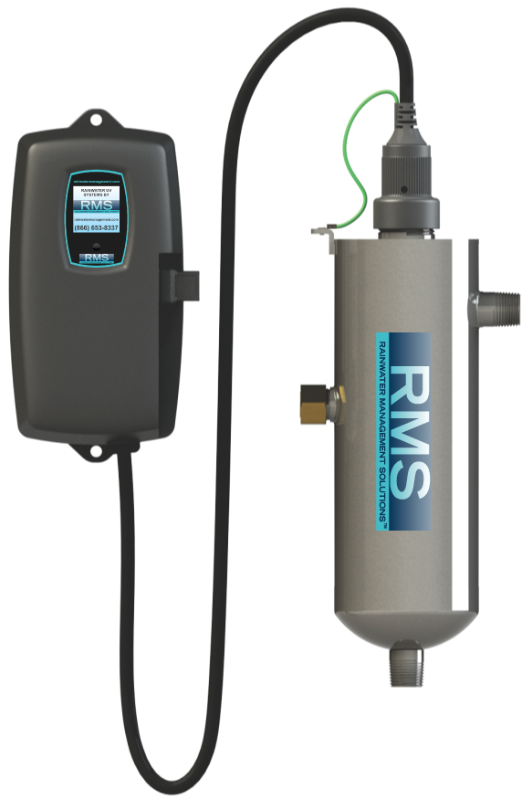

The RMS5-5C model features include a color user interface with full diagnostics and warnings including QR codes.  This makes keeping up with yearly maintenance and troubleshooting a breeze.

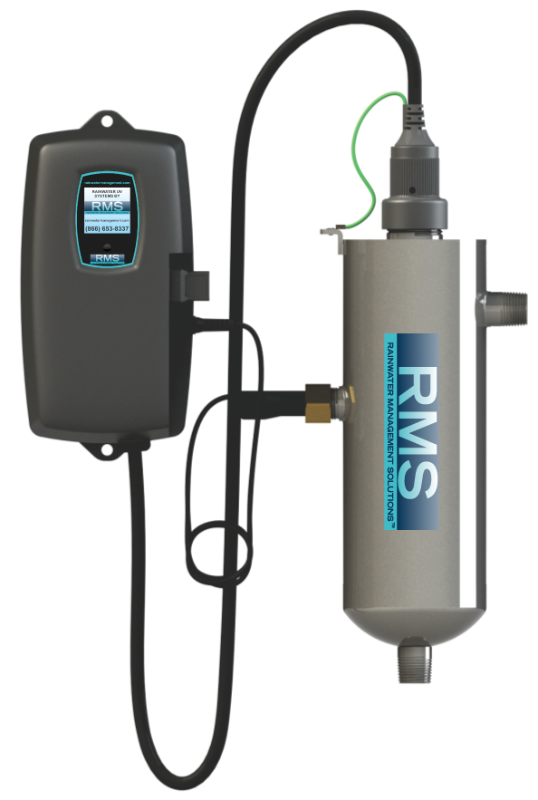

The RMS6-5C Model features include a 254 nm Teflon based UV Sensor with 4-20mA output capabilities and solenoid read capabilities (optional modules are required).

Optional Modules

UV Sensor Module- RMS-S3 (for RMS4/5/6-5C, 10C, 15C, 25C, 40C)

Solenoid Connection Module 110V - MOD-SOL1-RMS

4-20mA Connection Module - MOD-420-RMS

Temperature Management Cooling Fan (fits 3-1/2" chambers) - 130014

Ultrasonic Flow Meter (1/2", 3/4", 1", 1-1/2")- LFM-0.5 / LFM-0.75 / LFM-1.0 / LFM-1.5

Sherpa Module (for RMS5/6 only) - MOD-SHERPA

Remote Alarm Module - MOD-RAM-RMS

Replacement Bulbs & Sleeves

Bulb - RMS-L210C

Sleeve - RMS-Q210

Downloads

RMS4 Series LP-HO Spec Sheet

RMS5/6 Series LP-HO Spec Sheet
